Vista/Win7/8/10 BDE settings for running tkOffice

Common issue - Error $2101/ $2500  when starting tkOffice

Shared Memory setting may need to be adjusted for running tkOffice concurrently with takeoff.

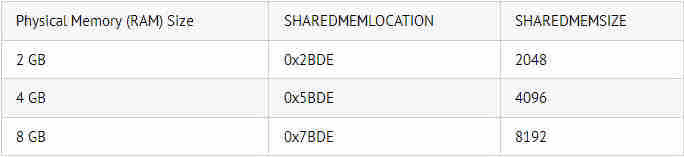

SHAREDMEMLOCATION 2BDE or /5BDE or 7BDE

SHAREDMEMSIZE(sample)  2048 or 4096 or 8192

BDE shared memory



Either set from:

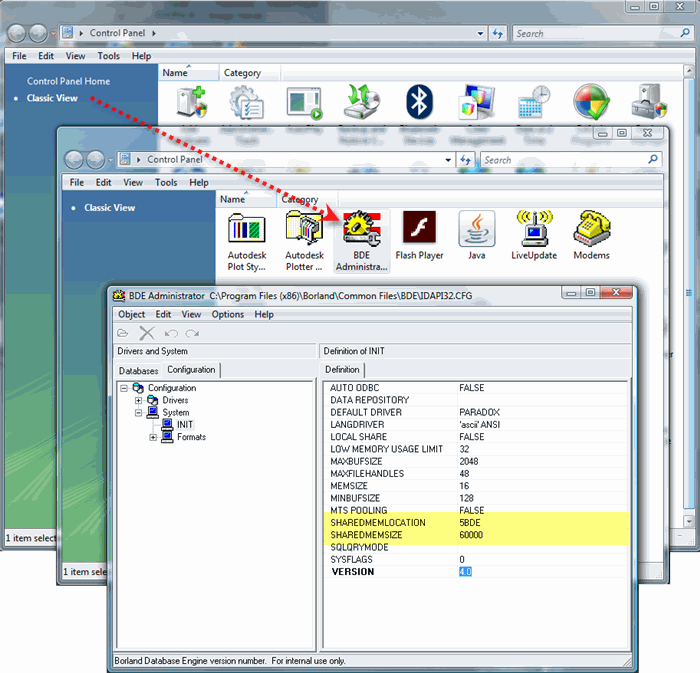

 A. Control Panel

  if "Apply/Save" operation is very slow then try option B



BDE settings

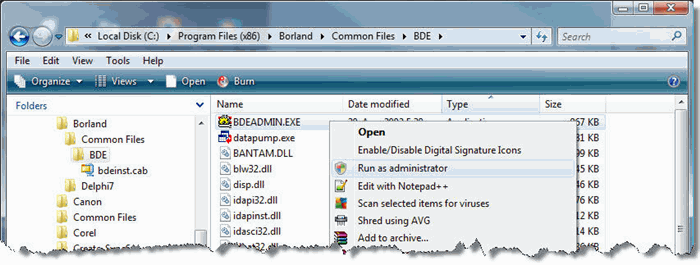

 B. Program Files



BDE settings
